Guided Medium





Guided media, which are those that provide a channel from one device to another, include twisted-pair cable, coaxial cable, and fiber-optic cable. A signal traveling along any of these media is directed and contained by the physical limits of the medium.

Twisted-pair and coaxial cable use metallic (copper) conductors that accept and transport signals in the form of electric current.

Optical fiber is a cable that accepts and transports signals in the form of light.

Twisted-Pair Cable

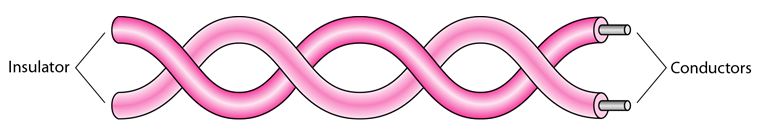

A twisted pair consists of two conductors (normally copper), each with its own plastic insulation, twisted together, as shown in the following figure.



twisted pair cables1



One of the wires is used to carry signals to the receiver, and the other is used only as a ground reference. The receiver uses the difference between the two. In addition to the signal sent by the sender on one of the wires, interference (noise) and crosstalk may affect both wires and create unwanted signals.

If the two wires are parallel, the effect of these unwanted signals is not the same in both wires because they are at different locations relative to the noise or crosstalk sources (e,g., one is closer and the other is farther). This results in a difference at the receiver. By twisting the pairs, a balance is maintained.




For example, suppose in one twist, one wire is closer to the noise source and the other is farther; in the next twist, the reverse is true. Twisting makes it probable that both wires are equally affected by external influences (noise or crosstalk).

Unshielded Versus Shielded Twisted-Pair Cable

The most common twisted-pair cable used in communications is referred to as unshielded twisted-pair (UTP). IBM has also produced a version of twisted-pair cable for its use called shielded twisted-pair (STP). STP cable has a metal foil or braided mesh covering that encases each pair of insulated conductors which improves the quality of cable by preventing the penetration of noise or crosstalk, it is bulkier and more expensive.

Categories

The Electronic Industries Association (EIA) has developed standards to classify unshielded twisted-pair cable into seven categories. Categories are determined by cable quality, with 1 as the lowest and 7 as the highest. Each EIA category is suitable for specific uses.

Performance

One way to measure the performance of twisted-pair cable is to compare attenuation versus frequency and distance. A twisted-pair cable can pass a wide range of frequencies. With increasing frequency, the attenuation, measured in decibels per kilometer (dB/km), sharply increases with frequencies above 100 kHz.

Applications

Twisted-pair cables are used in telephone lines to provide voice and data channels and Local-area networks, such as lOBase-T and lOOBase-T, also use twisted-pair cables.

Coaxial Cable:

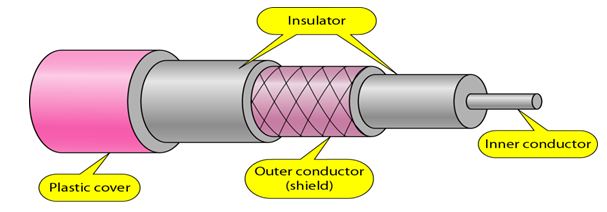

Coaxial cable (or coax) carries signals of higher frequency ranges than those in twisted pair cable. Coax has a central core conductor of solid or stranded wire (usually copper) enclosed in an insulating sheath, which is, in turn, encased in an outer conductor of metal foil, braid, or a combination of the two. The outer metallic wrapping serves both as a shield against noise and as the second conductor, which completes the circuit. This outer conductor is also enclosed in an insulating sheath, and the whole cable is protected by a plastic cover which is shown as follows.



Coaxial Cable Standards:

Coaxial cables are categorized by their Radio Government (RG) ratings. Each RG number denotes a unique set of physical specifications, including the wire gauge of the inner conductor, the thickness and type of the inner insulator, the construction of the shield, and the size and type of the outer casing. Different categories are like RG-59, RG-58 and RG-11.

guided medium_Coaxial Cable

Performance:

The attenuation is much higher in coaxial cables than in twisted-pair cable. In other words, although coaxial cable has a much higher bandwidth, the signal weakens rapidly and requires the frequent use of repeaters.


Applications:

The different applications of Coaxial cable are as follows.

1. Coaxial cable was widely used in analog telephone networks where a single coaxial network could carry 10,000 voice signals.

2. Cable TV networks also use coaxial cables.

3. Another common application of coaxial cable is in traditional Ethernet LANs



Fiber-Optic Cable:

A fiber-optic cable is made of glass or plastic and transmits signals in the form of light.

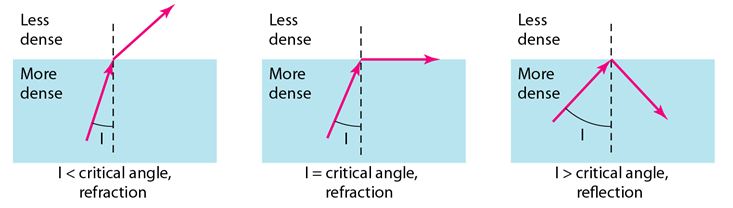

Light travels in a straight line as long as it is moving through a single uniform substance. If a ray of light traveling through one substance suddenly enters another substance of a different density, the ray changes direction. The following figure shows how a ray of light changes direction when going from a more dense to a less dense substance.



guided medium_FiberOptic Cable



As the figure shows, if the angle of incidence I (the angle the ray makes with the line perpendicular to the interface between the two substances) is less than the critical angle, the ray refracts and moves closer to the surface. If the angle of incidence is equal to the critical angle, the light bends along the interface. If the angle is greater than the critical angle, the ray reflects (makes a turn) and travels again in the denser substance. Note that the critical angle is a property of the substance, and its value differs from one substance to another.

Optical fibers use reflection to guide light through a channel. A glass or plastic core is surrounded by a cladding of less dense glass or plastic. The difference in density of the two materials must be such that a beam of light moving through the core is reflected off the cladding instead of being refracted into it as shown in the following figure.



Propagation Modes:

Current technology supports two modes (multimode and single mode) for propagating light along optical channels, each requiring fiber with different physical characteristics. Multimode can be implemented in two forms: step-index or graded-index as shown in the following figure.



1. Multimode:



Multimode is so named because multiple beams from a light source move through the core in different paths. How these beams move within the cable depends on the structure of the core, as shown in the following figure.

In multimode step-index fiber, the density of the core remains constant from the center to the edges. A beam of light moves through this constant density in a straight line until it reaches the interface of the core and the cladding. At the interface, there is an abrupt change due to a lower density; this alters the angle of the beam's motion. The term step index refers to the suddenness of this change, which contributes to the distortion of the signal as it passes through the fiber.

In multimode graded-index fiber, decreases this distortion of the signal through the cable. The word index here refers to the index of refraction. As we saw above, the index of refraction is related to density. A graded-index fiber, therefore, is one with varying densities. Density is highest at the center of the core and decreases gradually to its lowest at the edge. The above figure shows the impact of this variable density on the propagation of light beams.

2. Single-Mode:



Single-mode uses step-index fiber and a highly focused source of light that limits beams to a small range of angles, all close to the horizontal. The single mode fiber itself is manufactured with a much smaller diameter than that of multimode fiber, and with substantially lowers density (index of refraction). The decrease in density results in a critical angle that is close enough to 90° to make the propagation of beams almost horizontal. In this case, propagation of different beams is almost identical, and delays are negligible. All the beams arrive at the destination "together" and can be recombined with little distortion to the signal.

Performance:

Attenuation is flatter than in the case of twisted-pair cable and coaxial cable. The performance is such that we need fewer (actually 10 times less) repeaters when we use fiber-optic cable.

Applications

• Fiber-optic cable is often found in backbone networks because its wide bandwidth is cost-effective.

• Some cable TV companies use a combination of optical fiber and coaxial cable, thus creating a hybrid network. Optical fiber provides the backbone structure while coaxial cable provides the connection to the user premises. This is a cost-effective configuration since the narrow bandwidth requirement at the user end does not justify the use of optical fiber.

• Local-area networks such as 100Base-FX network (Fast Ethernet) and 1000Base-X also use fiber-optic cable.

Advantages and Disadvantages of Optical Fiber:

Fiber-optic cable has several advantages which are as follows.

1. Higher bandwidth:



Fiber-optic cable can support dramatically higher bandwidths and hence data rates than either twisted-pair or coaxial cable. Currently, data rates and bandwidth utilization over fiber-optic cable are limited not by the medium but by the signal generation and reception technology available.

2. Less signal attenuation:



Fiber-optic transmission distance is significantly greater than that of other guided media. A signal can run for 50 km without requiring regeneration. We need repeaters every 5 km for coaxial or twisted-pair cable.

3. Immunity to electromagnetic interference: Electromagnetic noise cannot affect fiber-optic cables.

4. Resistance to corrosive materials: Glass is more resistant to corrosive materials than copper.

5. Light weight: Fiber-optic cables are much lighter than copper cables.

6. Greater immunity to tapping: Fiber-optic cables are more immune to tapping than copper cables. Copper cables create antenna effects that can easily be tapped.




There are some disadvantages in the use of optical fiber which are as follows

1. Installation and maintenance:



Fiber-optic cable is a relatively new technology. Its installation and maintenance require expertise that is not yet available everywhere.

2. Unidirectional light propagation:



Propagation of light is unidirectional. If we need bidirectional communication, two fibers are needed.

3. Cost:



The cable and the interfaces are relatively more expensive than those of other guided media. If the demand for bandwidth is not high, often the use of optical fiber cannot be justified.
