Types of Entities in Relational Data Model:





Entity:

An Entity is an object of interest to the end user. An entity actually refers to the entity set and not to a single entity occurrence. In other words, the word entity in the ERM corresponds to a table—not to a row—in the relational environment. The ERM refers to a table row as an entity instance or entity occurrence. In both the Chen and Crow’s Foot notations, an entity is represented by a rectangle containing the entity’s name. The entity name, a noun, is usually written in all capital letters. Different types of Entities are as follows.

Strong Entities:

If an entity can exist apart from all of its related entities (it is existence-independent), then that entity is referred to as a strong entity or regular entity. For example, suppose that the XYZ Corporation uses parts to produce its products. Furthermore, suppose that some of those parts are produced in-house and other parts are bought from vendors. In that scenario, it is quite possible for a PART to exist independently from a VENDOR in the relationship “PART is supplied by VENDOR,” because at least some of the parts are not supplied by a vendor. Therefore, PART is existence independent from VENDOR.





Weak Entities:

A weak entity is one that meets two conditions:

1. The entity is existence-dependent; that is, it cannot exist without the entity with which it has a relationship.
2. The entity has a primary key that is partially or totally derived from the parent entity in the relationship.

For example, a company insurance policy insures an employee and his/her dependents. For the purpose of describing an insurance policy, an EMPLOYEE might or might not have a DEPENDENT, but the DEPENDENT must be associated with an EMPLOYEE. Moreover, the DEPENDENT cannot exist without the EMPLOYEE; that is, a person cannot get insurance coverage as a dependent unless s(he) happens to be a dependent of an employee. DEPENDENT is the weak entity in the relationship “EMPLOYEE has DEPENDENT.”

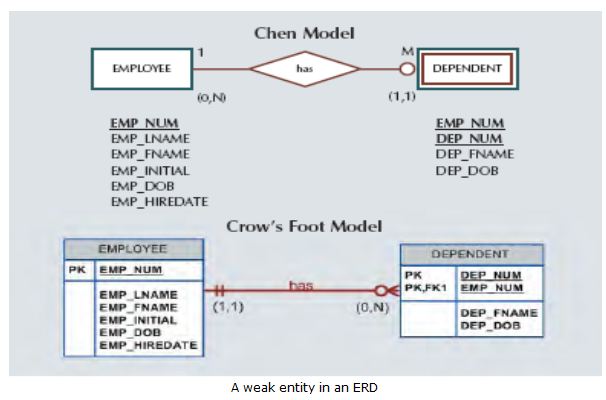

    The Chen notation in the following Figure identifies the weak entity by using a double-walled entity rectangle.

 Types of Entities_ Strong and Weak Entities

Associative (Composite) Entities:

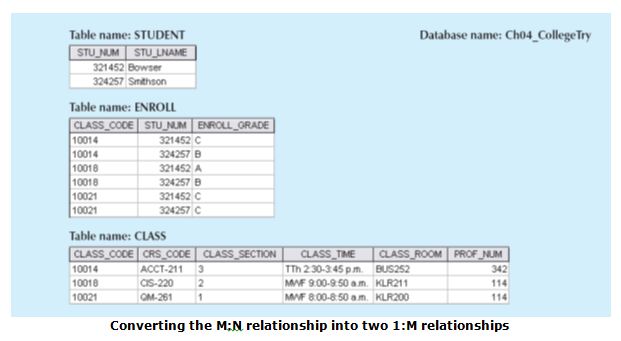

The associative entity is used to implement a M:N relationship between two or more entities. This associative entity (also known as a composite or bridge entity) is composed of the primary keys of each of the entities to be connected. An example of such a bridge is shown in the following Figure. The Crow’s Foot notation does not identify the composite entity as such. Instead, the composite entity is identified by the solid relationship line between the parent and child entities, thereby indicating the presence of a strong (identifying) relationship.


Types of Entities_ associative entity

Note that the composite ENROLL entity in the above Figure is existence-dependent on the other two entities; the composition of the ENROLL entity is based on the primary keys of the entities that are connected by the composite entity. The composite entity may also contain additional attributes that play no role in the connective process. For example, although the entity must be composed of at least the STUDENT and CLASS primary keys, it may also include such additional attributes as grades, absences, and other data uniquely identified by the student’s  performance in a specific class.





Finally, keep in mind that the ENROLL table’s key (CLASS_CODE and STU_NUM) is composed entirely of the primary keys of the CLASS and STUDENT tables. Therefore, no null entries are possible in the ENROLL table’s key attributes.
